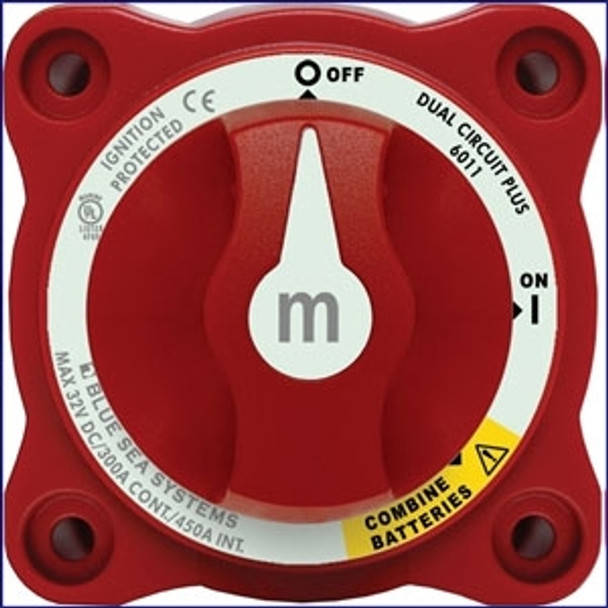

Blue Sea Systems 6011 m-Series (Mini) Battery Switch Dual Circuit Plus Red

$55.89 $39.99
(You save $15.90)
SKU:
6011
Shipping:
Calculated at checkout
Quantity:

Product Description

Blue Sea Systems 6011 m-Series (Mini) Battery Switch Dual Circuit Plus Red

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Features:

  • Make before break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • Ideal for marine or RV applications
  • All non-corrosive marine grade metals
  • Molded in durable reinforced polycarbonate
  • Tactile textures indicate knob position by feel only
  • Label with international ON/OFF legends
  • Removable key or knob remains positively retained

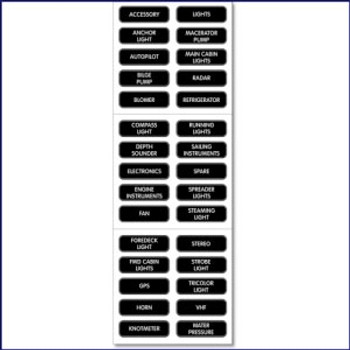

  • ICON label set included for circuit identification

Specifications:

  • Cranking Rating (10 sec.) : 1,000 Amps
  • Intermittent Rating: 5 min. : 450 Amps
  • Continuous Rating: 300 Amps
  • Maximum Voltage Rating : 32 Volts DC
  • Terminal Stud Size: 3/8-16 (M10)
  • Terminal Stud Torque: 120 in-lb (13.56 N?m) max.
  • Mounting Holes: Accept #10 Screw
  • Cable Size to Meet Ratings: 4/0 AWG (120mm?)
  • Cable Clearance For 4/0 AWG Cables: 1.12 (28.4mm)
  • Weight Lb (Kg) : 0.80 (0.36)
